Home > Products > Conical twin screw barrel > 65/132 80/156 etc. conical twin screw barrel for PVC pipe/profile in China

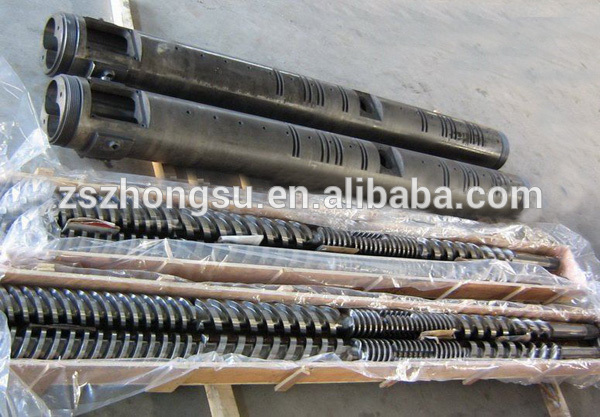

65/132 80/156 etc. conical twin screw barrel for PVC pipe/profile in China

Product Description

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#f4f6f8;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;margin-left:50px;margin-right:50px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:750px;height:393.646408839779px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:0;margin-left:0;width:750px;height:393.646408839779px}#detail_decorate_root .magic-4{vertical-align:top}#detail_decorate_root .magic-5{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-6{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-7{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-8{width:750px;border-collapse:collapse}#detail_decorate_root .magic-9{min-height:18px;padding:5px 10px;width:66px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-10{text-align:center}#detail_decorate_root .magic-11{min-height:18px;padding:5px 10px;width:86px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-12{min-height:18px;padding:5px 10px;width:124px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-13{min-height:18px;padding:5px 10px;width:76px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-14{min-height:18px;padding:5px 10px;width:68px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-15{min-height:18px;padding:5px 10px;width:71px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-16{min-height:18px;padding:5px 10px;width:110px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-17{min-height:18px;padding:5px 10px;width:65px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-18{display:none}#detail_decorate_root .magic-19{min-height:18px;padding:5px 10px;width:158px;box-sizing:content-box}#detail_decorate_root .magic-20{min-height:18px;padding:5px 10px;width:207px;box-sizing:content-box}#detail_decorate_root .magic-21{min-height:18px;padding:5px 10px;width:156px;box-sizing:content-box}#detail_decorate_root .magic-22{min-height:18px;padding:5px 10px;width:141px;box-sizing:content-box}#detail_decorate_root .magic-23{overflow:hidden;width:750px;height:291.6666666666667px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-24{margin-top:0;margin-left:0;width:750px;height:291.6666666666667px}#detail_decorate_root .magic-25{overflow:hidden;width:750px;height:255.1948051948052px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-26{margin-top:0;margin-left:0;width:750px;height:255.1948051948052px}#detail_decorate_root .magic-27{overflow:hidden;width:750px;height:327.20105124835743px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-28{margin-top:0;margin-left:0;width:750px;height:327.20105124835743px}#detail_decorate_root .magic-29{overflow:hidden;width:750px;height:486.64886515353805px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-30{margin-top:0;margin-left:0;width:750px;height:486.64886515353805px}#detail_decorate_root .magic-31{overflow:hidden;width:750px;height:521.25px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-32{margin-top:0;margin-left:0;width:750px;height:521.25px}#detail_decorate_root .magic-33{overflow:hidden;width:750px;height:319.8529411764706px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-34{margin-top:0;margin-left:0;width:750px;height:319.8529411764706px} Product Description Conical twin screw and barrel Specifications:
♦ is the main product line of ZHONGSU brand.
♦ is cost-effective substitute for world famous brands extruder parts.
♦ providing customized processing services.
♦ with over 20 years supplier experience for many famous plastics & rubber machine manufacturing enterprises in domestic market.

1.Physical Characteristics of Bimetallic Screw.
Type
Model
Hardness
(HRC)
Wear resistant
Corrosion resistant
Thickness
Application
Glass Fiber


PTA weld
38CrMoAlA
Ni-base alloy
45-58
Excellent
Special excellent
1.5~3mm
Under 10%
SKD61
Ni-base alloy
45-58
Special excellent
Excellent
1.5~3mm
Under 15%
Nitriding
Nitrided
HV more than 800
Good
Good
0.25mm
/
2. Product Details
Zhongsu twin conical screws extruder use for pipe extrusion:
Model
Screw Diameter (mm)
Capacity(kgs/h)
Capacity(kgs/h)
ZSE45
45/90
44
110
ZSE51
51/105
37
125
ZSE55
55/110
37
150
ZSE65
65/132
37
260
ZSE80
80/156
37
400
ZSE92
92/188
40
800
Material Application Company Introduction Packing&Shipping 1)Packing: Wrapped up by film in wooden cases
2)Port Departure: Ningbo Port
3)Delivery time: 25 working days upon receipt of 30% deposit(days based on your quantity)

We use strong plywood or wooden case for all our products. Our Certification Why Choose Us 1.Our Strength: We have an experience of more than 20 year of manufacturing and designing Plastic machines, varied Screws and Barrels and spares. We concentrate on improving quality, updating design and enhancing service.

2.Our products: Screws Barrels for Injection, Extrusion, and Blow Molding applications; relevant accessories(such as die head, gearbox, filter screen changer and so on); plastic processing machinery.

3.Location advantage: located in China's Screw Town - Jintang Town in Zhoushan City, near to NingboPort .

4.Market areas: global sales network reaching South America, Eastern Europe, Southeast Asia, Africa, Oceania and the Middle East.

5.We promise: We assure the customer benefits, We provide competitive price, We Emphasis On Cooperation.We own the international advanced equipments and facilities of heat treatment, alloy spray welding and inspection.At the same time,We provide all kinds of products designe,every products with high quality after-serivers..

Contact us if you need more details on screw barrel. We are ready to answer your questions on packaging, logistics, certification or any other aspects about twin screw barrel、conical twin machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
