single injection screw barrel supplier

Product Description

Product Description 38CrMoAIA single screw barrel for injection molding machine. 1.China famous brand screw barrel 2.Factory direct with high -tech 3.Specially in bimetallic technique,wear-resistant 4.Certificatoni:ISO9001:2015
Technical Specification
Hardness After Hardening & Tempering
HB280-320
Nitrided Hardness
HV900-1100
Nitrided Depth
0.5-0.8mm
Nitrided Brittleness
Less Than Grade 2
Surface Roughness
Ra 0.4
Screw Straightness
0.015mm
Surface Chromium-Plating's Hardness After Nitriding
≥900HV
Chromium-Plating Depth
0.025-0.10mm
Bimetallic Hardness
HRC62-66
Bimetallic Depth
2mm-5mm
Materials & Processes
Material
38CrMoAla,SACM645,42CrMo,SKD61
Process
Advanced Nitriding Process
Corrosion&resistance alloy process
Material Application
1)General Plastics
2)ABS,PA,PC,PE,PET,PP,PS,EVA,PU,PVC,U-PVC,etc
3)PA + GF(Glass Fiber)
4)Flame-resistant Reinforced Plastics
5)All kinds of Mixed Recycled Material(in Scrap or Granule), PVC + 30% CaCo3, etc
Our Service Measured Service Sample testing support Engineer design Available to service overseas
Pre-Sales Service Inquiry and consulting suppport

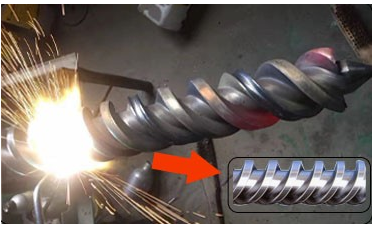

Professional engineer answer After-Sales Service View our factory Take finished order photo Long time after service Our Advantage Bimetallic screw ①Strong Abrasion Resistant, Good for 30%-50% glass fiber ,Caco3 and reworked materials
②Using special alloy powders sprayed and welded on the screw's ridge.
③Super hard alloy high density, low porosity and high hardness
④High corrosion resistance , high wear resistance and high temperature resistance properties

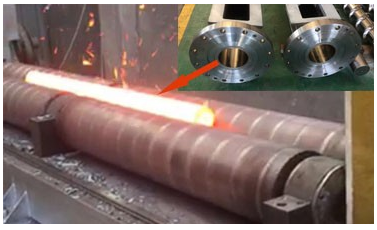

Bimetallic barrel ①Product Catelgory:Bimetallic hole centrifugal casting barrel ②Working range: inner diameter 15mm-500mm
③Sweden Allow nameplate
④Patent all alloy sintering technology, super wear resistance and super corrosion resistance
Products Show Extruder Screw Barrel Diameter: φ15mm-500mm
1.For HDPE/LDPE/LLDPE Film blowing machine
2.For PVC/PE/PPR Pipe
3.For Granulation
4.Other Extrusion

Injection screw barrel. Diameter: φ15mm-500mm
Clamping Force:58T-6000T
1.For Chinese famous injection molding machine
2.For Foreign famous injection molding machine
Such as Haitian,Chenhsong,Battenfeld,JSW,Nissei etc.

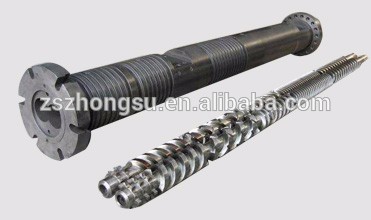

Conical twin &Paralle Twin screw barrel Size:φ45/90,φ45/100,φ50/105,φ51/105,φ55/110,φ55/120,φ58/124,φ60/125,φ65/120,φ65/132,φ68/143,φ70/140,φ75/150,φ80/143,φ80/156,φ92/188,etc.
The compressioin ration of screw can be designed according to different raw material and products.
1.Used for PVC Pipe,Profile,WPC,Sheet,Board,etc
2.Used for granulatioin

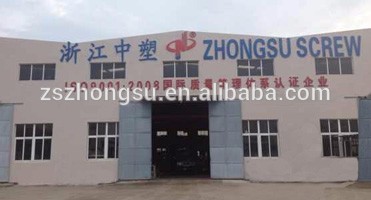

Our Company Factory Our Factory Workshop Our Workshop Warehouse Our Warehouse Team Our Team


Packing & Delivery Packing Details : 1set,Wrapped up by film in wooden cases
Delivery Details : 25 working days upon receipt of 30% deposit and confirmed drawing(some type have finished in stock)
1. Finished in stock 2. Final cleaning and checking 3. Take photo and suitable packing 4.Film packing 5. Box packing and wood fixation 6. Complete package delivery Our Certifications FAQ Q: Are you trading company or manufacturer ? A: We are factory, you can get competitive price and superior service from us.
Q: How long is your delivery time?
A: Generally it is 5 days if the goods are in stock. or it is 20-25 days if the goods are not in stock, it is according to quantity.
Q: How about the quality ensured A: All of our production process strictly followed ISO9001, our products are long durable with 12 months.
Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

Contact us if you need more details on single screw barrel. We are ready to answer your questions on packaging, logistics, certification or any other aspects about bimetalic screw barrel、injection molding machine screw barrel pp pe abs. If these products fail to match your need, please contact us and we would like to provide relevant information.
